Description

Product details

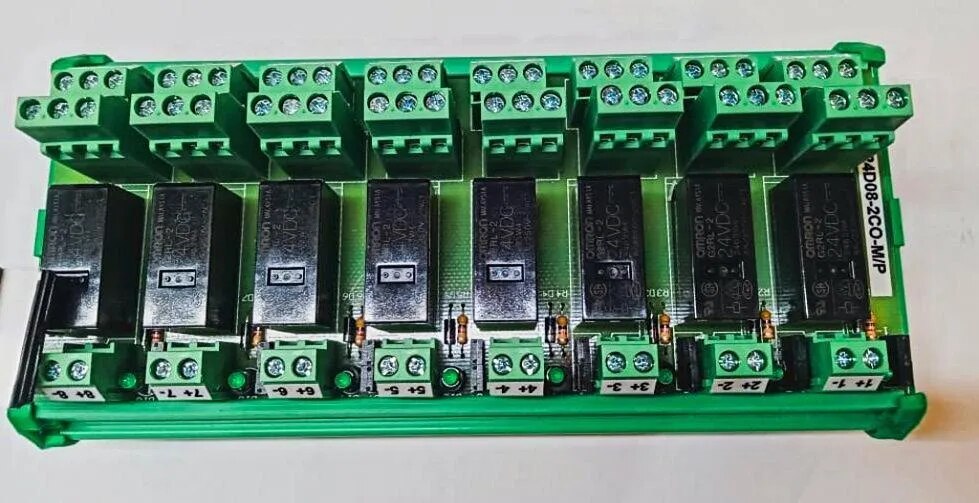

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 50,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 8 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1,440 Ohms +/- 10%. Coil Voltage : 24 V DC Relay Socket : NA Input Current/ Channel : 17 mA per channel PCB Dimension : 180 mm X 72 mm. Mechanical Dimensions : 182 mm X 90 mm X 68 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2RL-2, Electro-mechanical Packaging Details - In corrugated box with bubble sheet.
